Building a Slack command with Claudia bot builder

Posted by Marcus Hammarberg on June 4, 2016
Stats

I’ve written a few posts on Claudia now and as often I jumped almost too early on the boat - it turns out that there’s significant improvements to both Claudia herself and the entire ecosystem around the main tool.

The main tool Claudia:

automates and simplifies deployment workflows and error prone tasks, so you can focus on important problems and not have to worry about AWS service workflows

In this post I wanted to check out a new tool around Claudia that helps you to build bots for use in chats - specifically for this post in Slack.

AWS Lambda is really cool but it leaves one of those: Oh wow… now what am I going to use this for? feeling. It’s just code that scale infinity without you having to worry about it. It’s a very open playing field.

What we’re going to build

To build something a little more useful than a HelloWorld (although they can be fun too) In this post we are going to build a little Slack Slash Command called pingu. The need came from my current team at work where we sometimes need a quick way of checking response-times for our sites. With pingu you can, in Slack, just go /pingu http://www.marcusoft.net and it will return you a message about how long it took to request that url.

Let’s rebuild that now. Step by step.

Up and run

We’re going to follow the instructions from the Getting Started guide of the Claudia-bot-builder repository. There’s some short administration first;

  • Install nvm or something similar so that you can nvm install v4.3.2 that Claudia-bot-builder requires (and AWS now supports)
  • Intall ClaudiaJs globally (if you want to) for that version of Node npm install claudia -g or update it if it’s already installed npm update claudia -g
  • Set up an AWS Account - yeah that’s troublesome, but a one time thing. Hang in there.
  • And then some coding.

Create a new directory called pingu, cd into it and then init a new git repository and a npm application. Here’s one command to do all of that for you:

1
mkdir pingu && cd pingu && git init . && npm init

Add a new file bot.js and enter the following code:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
const botBuilder = require('claudia-bot-builder');
const co = require('co');
const coreq = require('co-request');

module.exports = botBuilder(request => {
    var url = request.text;

    return co(function*() {
        var start = new Date();
	    var result = yield coreq(url);
    	var end = new Date() - start;

        return `Pinged ${url} successfully - took ${end} ms`;
    }).catch(function(err) {
		return `Could not ping ${url} (${err.message})`;
    });
});

The claudia-bot-builder gives us a simple construct that receives the request object as single inparameter. From that we can read the request.text property which contains the text that the user sends us. In our case we will use a Slack Slash Command like this: /pingu http://www.marcusoft.net, and in that case request.text will be http://www.marcusoft.net.

I’m using the co-request module as to do simple http request, co-request allows me to use yield rather than the callback horrors that I’ve come to hate.

There’s some simple error handling in there as well. Good enough for now.

To get all the dependencies we need into our application, and more importantly into the package.json, we can use this command:

1
npm install claudia-bot-builder co co-request -S

That’s the hard part done.

Deploy to the cloud

Now for the part where Claudia excels. Deploying this is super simple:

1
claudia create --region us-east-1 --api-module bot

Note that the region may have to be tweaked to suite the place where you have your account setup. Also note that if you’ve named your module something else than bot.js you will have to change the api-module name above.

I’ve move this into a script in the package.json together with the update command we will use later:

1
2
3
4
"scripts": {
    "create": "claudia create --region us-east-1 --api-module bot",
    "deploy" : "claudia update"
 }

Which means that I can npm run create at the prompt now. Do that and Claudia goes off and does her thing. Look at that new and fancy status reports…

After a few seconds you are done and Claudia spits out a nice little summary of what’s been created in the as-needed-growing/scaling cloud (that part blows my mind really). Like this:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
{
  "lambda": {
    "role": "pingu-executor",
    "name": "pingu",
    "region": "us-east-1"
  },
  "api": {
    "id": "vozc2ng03h",
    "module": "bot",
    "url": "https://vozc2ng03h.execute-api.us-east-1.amazonaws.com/latest",
    "deploy": {
      "facebook": "https://vozc2ng03h.execute-api.us-east-1.amazonaws.com/latest/facebook",
      "skype": "https://vozc2ng03h.execute-api.us-east-1.amazonaws.com/latest/skype",
      "telegram": "https://vozc2ng03h.execute-api.us-east-1.amazonaws.com/latest/telegram",
      "slackSlashCommand": "https://vozc2ng03h.execute-api.us-east-1.amazonaws.com/latest/slack/slash-command"
    }
  }
}

All see all those deployed functions that means that we could reach our little pingu bot from Skype, Facebook messenger, Telegram and Slack. We will use the last part, and hence will soon need that url.

Testing

We could in fact that the setup is correct, by using the testing feature of Claudia.

Create a testdata/basictest.json file containing the following:

1
2
3
4
5
6
{
	"context" : {
		"path" : "/",
		"method" : "GET"
	}
}

Now add a new script: "test" : "claudia test-lambda —event ./testdata/basicTest.json" and then run npm t and the prompt. This will quite simply call our service to verify that everything is deployed correctly. Pretty neat.

Hook up a Slack command

Ok, but that’s not why we are here. Let’s create a slack command. This is very straight-forward by following the description on the Slack api-site. The thing you want to look for is called a “custom slash command”.

Actually finding where to create the command was a bit of a hassle for me, but this link did the trick. Make sure that you’re logged into the correct team.

From this part on it’s just following the wizard. Here’s a few pointers:

  • My command is called `/pingu’
  • URL is the deploy-url that Claudia spit out for slack above ("slackSlashCommand": "https://vozc2ng03h.execute-api.us-east-1.amazonaws.com/latest/slack/slash-command). ​ So that’s https://vozc2ng03h.execute-api.us-east-1.amazonaws.com/latest/slack/slash-command in my case
  • I left method as POST
  • I customised the name to be pingu
  • I uploaded a, most likely trademark violated, picture for my command
  • Finally I added a nice description and a usage hint

I then clicked Save integration.

Gluing them together

Now that just leaves one final thing - token-based authentication. Brrr… Luckily Claudia got us covered.

Slack generated a token for us. In my case it was 0L6RSXRO0du6Ig6pM2X2Mx3D (but I’ve changed it now…).

Copy that token and then run the following command in the terminal:

1
claudia update --configure-slack-slash-command

Claudia will now redeploy the lambda function and at the end ask you input the token from Slack.

To be honest it will ask you about your Client ID, Client Secret and a homepage url too. I do not really understand that, but think that it doesn’t matter much for our integration. That’s needed when you create a Slack application, which we don’t have to for our little integration. Looking forward to be enlightened by astute readers in the common.

[UPDATED] Ok - I now really understand that… The Client ID and Secret is indeed needed only if you create a proper Slack application that can be installed into any team. If you’re just going to use it in your own team just answer anything to those questions.

Better yet… use Claudia Bot Builder version 1.1.0 and you have different configuration options for the two different types of applications.

claudia update --configure-slack-slash-command for slash-commands for only your team (that’s what this article is about.). And use claudia update --configure-slack-slash-app for Slack applications.

Test!

Once all of that is done you can now go to the Slack group for which you installed the command and run your beauty.

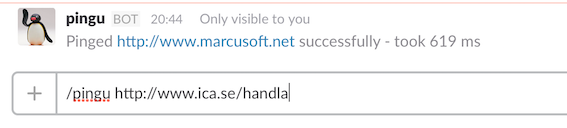

Pingu in Action

It works! Everyone in your team could now try it out by going /pingu in the Slack channel. You can also create Slack-button to install it in other channels but I leave that as an exercise for others to try.

Summary

As always, when writing everything down it will be pretty long, but quite honestly it took me ca 15 minutes to get the first version of this command up and running the first time I tried it.

A testimony to see this quick turnaround in action would be to change the command a bit. For example allow for a comma separated list. Think about how much time you spend writing your business logic and how little you spend on infrastructure and redeploys (npm run deploy).

It just works.

My code can be found here.
